If you’ve just picked up a magnetic keyboard, there’s a good chance you’re not using even half of what it can do. Many people treat these boards exactly like old-school mechanical keyboards. But magnetic keyboards with Hall Effect sensors are different: they track the entire motion of each key, not just the moment it makes contact.
In this guide, you’ll walk through three features you really should know how to use: adjustable actuation points, Rapid Trigger technology, and analog-style input.
How Magnetic Keyboards Work Differently
To get the most from a magnetic keyboard, it helps to understand how it behaves compared with a traditional mechanical board.
On a typical mechanical keyboard, each key is basically an on/off switch. Once you press past a fixed point, the switch closes and sends an “ON” signal. When you release it past that point, it opens and goes “OFF.” The keyboard doesn’t know how far the key has moved—just whether it’s pressed or not.

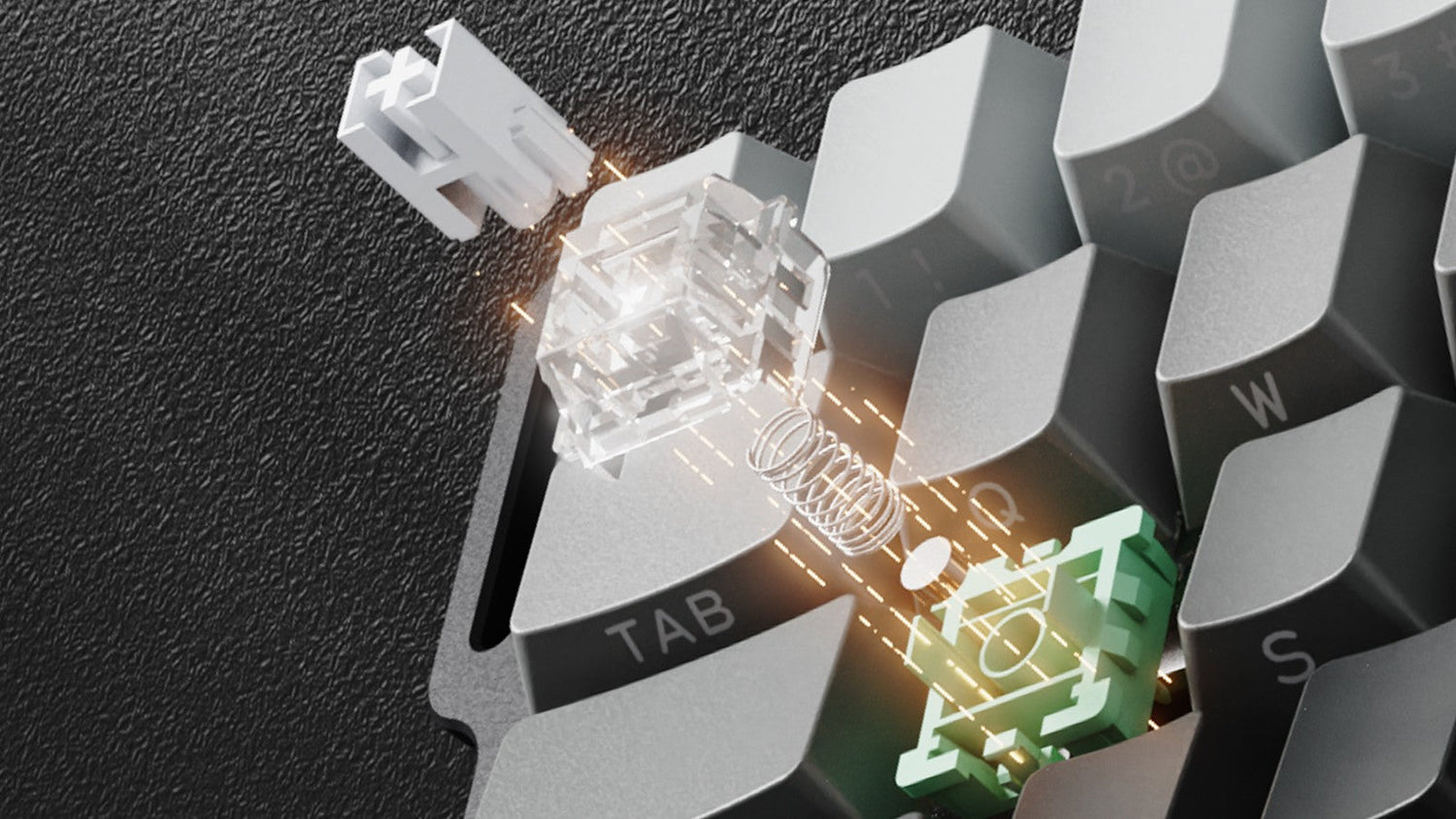

Magnetic keyboards use Hall Effect sensors that constantly track the position of a magnet inside each key throughout its travel. That means the keyboard always knows exactly how far each key is pressed at any moment.
Because it can sense the full range of key travel, the keyboard can offer features like adjustable actuation points, Rapid Trigger behavior, and even analog-style input, instead of acting like a simple binary switch.
Core Feature 1: Adjustable Actuation Point
One of the biggest advantages of a magnetic keyboard is the ability to decide when a key press registers. On a typical keyboard, the actuation point is fixed at the factory. On a magnetic keyboard, you can move that point anywhere along the key’s travel using the keyboard software—often from around 0.1 mm (very shallow) up to about 4.0 mm (fully bottomed out).
You can save different profiles for different uses and switch between them with a click.
Gaming Setup (0.4 mm – 1.5 mm)
For fast-paced games—like FPS, MOBAs, or rhythm games—setting a shallow actuation point lets keys register almost as soon as you start pressing them.
- Your character reacts faster because inputs register earlier.
- You can make only your key movement cluster (for example, WASD) very sensitive, while leaving other keys at more standard depths.
- Be careful with extremely shallow settings (below ~0.8 mm). They feel lightning-fast but can cause accidental presses if you rest your fingers heavily on the keys.
Typing Setup (1.5 mm – 3.0 mm)
For typing, writing, or coding, accuracy usually matters more than raw speed.
- A deeper actuation point reduces typos because each key press has to be more deliberate.
- This feels closer to a traditional mechanical keyboard, which can make the transition more comfortable.
- You can keep a “typing” profile and swap back to your gaming profile using the software when needed.
Mixed Profiles
You’re not limited to a single style. For example, you can:
- Keep movement keys (WASD, space, shift) shallow for quick reactions.
- Set modifier keys (Shift, Ctrl, Alt) deeper to reduce accidental activations.
- Save a few profiles, such as “FPS,” “Typing,” and “General Use,” and swap depending on what you’re doing.
Core Feature 2: Rapid Trigger
Adjustable actuation is powerful, but Rapid Trigger (sometimes called Dynamic Actuation) is where magnetic keyboards really pull away from traditional boards—especially for gaming.
On a normal keyboard, once you press a key, you must release it past a fixed reset point before it can register again. With Rapid Trigger, the reset happens dynamically: the key can deactivate as soon as you start lifting your finger, and activate again as soon as you start pressing down—often with just tiny movements.
In practice, that means the keyboard responds to very small finger motions instead of requiring full up-and-down strokes.
Why Rapid Trigger Helps in Games
This kind of behavior is especially useful in:
- Changing Direction: In FPS games like CS or Valorant, you’re constantly switching between A and D to strafe. With Rapid Trigger, the key releases and reactivates almost instantly, helping you change direction more cleanly and quickly.
- Fast Repeated Presses: For games that need rapid tapping, you don’t have to fully release the key each time. Short micro-movements are enough to register repeated inputs.
- Precise Movement (“Peeking”): When you’re making small, controlled movements around corners, Rapid Trigger lets you perform short, consistent taps more easily.
How to Set Up Rapid Trigger
To get the most from this feature:
- Turn it on in your keyboard’s software.
- Adjust the sensitivity, which usually controls how little upward travel is required before a key resets.
- Combine it with a shallow actuation point for maximum responsiveness.
At first, Rapid Trigger may feel too sensitive. Your fingers might overdo movements you’re used to on a normal board. Give yourself time to adjust—many competitive players find it becomes a major advantage once they get used to it.
Core Feature 3: Analog Movement Simulation
Some magnetic keyboards go a step further and let you use key travel depth like a joystick or trigger. Instead of the key being simply “on” or “off,” the keyboard reads how deeply you’re pressing and converts that into a variable signal.
This is similar to squeezing a controller trigger slightly to walk, and fully to run.
Important: Not every magnetic keyboard supports analog-style output. It depends on both the hardware and the software.
Possible Uses
When supported, analog-style input can be helpful in:
- Driving Games: Lightly pressing W could give gentle acceleration, while fully pressing it could give full throttle.
- Stealth and Action Games: Press gently to walk or creep, press further to jog, and push all the way down to sprint.
- Creative Software: Use key depth to adjust brush size or tool intensity based on how far you press.
Limitations
This feature is powerful but still somewhat niche:
- Not all keyboard software can output true analog (e.g., XInput) signals.
- Some games don’t handle keyboard and controller-style input at the same time very well.
- Setup can be a bit technical and may require per-game tuning.
- The tech and software ecosystem are still developing, so it may feel less polished than the actuation and Rapid Trigger features.
For now, think of analog input as a fun, advanced feature for enthusiasts who like to tinker, rather than a must-have for everyone.
Software & Customization Are Essential
If you never open your keyboard’s software, your magnetic keyboard is basically behaving like an expensive standard board. All the special behavior—adjustable actuation, Rapid Trigger, analog modes—lives inside the software.
When you’re evaluating or using a magnetic keyboard, look for software that offers:
Actuation Point Adjustment
- Per-key or per-zone control of actuation depth
- Ability to save and switch between profiles
Rapid Trigger Settings
- Toggle on/off
- Control over how much upward travel is needed to reset the key
Analog Mode Configuration (if supported)
- Options to output as XInput or other controller-style signals
- Per-game or per-key mapping
Profile Management
- Create, name, and save different configurations (e.g., “FPS,” “Typing,” “Racing”)
- Easy switching via software or key shortcuts
Standard Customization Tools
- RGB lighting customization
- Macro recording and playback
- Full key remapping
Keyboards with onboard memory are especially convenient. They store your profiles directly on the keyboard, so your setup works even if the software isn’t running or when you plug into a different computer.
Put Your Magnetic Keyboard’s Capabilities to Work
Now you know what really sets a magnetic keyboard apart: customizable actuation for personalized feel, Rapid Trigger for faster and cleaner inputs, and optional analog-style behavior for more nuanced control.
The important thing to remember is that these features usually sit at safe, “boring” defaults until you change them. If you never touch the software, your advanced hardware is basically acting like a basic mechanical keyboard.
Take time to:
- Open your keyboard software.
- Create separate profiles for gaming and typing.
- Experiment with actuation depths and Rapid Trigger sensitivity on your most-used keys.
- Try analog-style features if your keyboard supports them and your games benefit from them.
With some deliberate setup and a bit of practice, you’ll finally be using your magnetic keyboard for what it was designed to do—not just as another keyboard, but as a finely tuned input device that matches how you play and work.
