A keyboard wrist rest can look like a simple accessory until you try to match one to a 60%, 75%, TKL, or full-size keyboard. A rest that is noticeably too short may leave part of your usual hand position outside the support area. An oversized one can take up mouse space that you would rather keep clear.
The simplest way to choose the right wrist rest size is to follow the seller's recommended keyboard key count. If you want a more precise fit, you can also measure your keyboard case and compare it with the listed wrist rest dimensions.
How to Measure Your Keyboard for a Wrist Rest
You only need a tape measure or ruler and the keyboard in the position you normally use.
1. Measure the full case width. Run the tape straight across the front edge from the far left side of the keyboard case to the far right. Include the outer frame, but do not measure only from the first keycap to the last.
2. Write down the width in inches or centimeters. Product pages may use either unit, so keeping both can make comparisons easier. For reference, 12 inches is about 30.5 cm, while 14 inches is about 35.6 cm.
3. Compare that number with the wrist rest width. A close match will usually line up cleanly with the keyboard. Small differences are generally fine, but check where your palms naturally sit if the rest is noticeably shorter.
4. Check the space in front of the keyboard. Measure from the keyboard's front edge to the edge of the desk so the wrist rest has enough depth to sit fully on the surface.
If you angle your keyboard while gaming, repeat the space check with the keyboard in that position. The keyboard itself does not become wider, but rotating it can bring one corner closer to the mouse pad and use more desk depth.
Keyboard Wrist Rest Size Guide by Layout
Keyboard layout is still useful for narrowing the search. Compact boards generally pair with shorter rests, while TKL and full-size layouts need progressively greater width. The figures below represent common shopping ranges, not standardized dimensions.
| Keyboard Layout | Common Key Count | Common Wrist Rest Width | What to Watch For |
|---|---|---|---|
| 60% | Around 61 | About 11.5 to 12.5 in / 29 to 32 cm | Compact case with no dedicated function row or numpad |
| 65% | Around 68 | About 12 to 13.5 in / 30 to 34 cm | Arrow and navigation keys can increase width |
| 75% | Around 80 to 84 | About 12.5 to 14 in / 32 to 36 cm | Case dimensions vary considerably |
| TKL | Around 87 | About 14 to 15 in / 35.5 to 38 cm | Usually wider than a compact 75% board |
| 96% / 98-key | Around 96 to 98 | About 15 to 16.5 in / 38 to 42 cm | Numpad is retained in a compressed layout |
| Full-size | Around 104 | About 16.5 to 19 in / 42 to 48 cm | Full navigation and number pad sections add width |
60% and 65% Keyboards
A 60% keyboard removes several sections found on larger boards, usually including the dedicated function row, navigation cluster, and number pad. That creates a short front edge that commonly works with a keyboard wrist rest pad around 12 inches wide.
A 65% layout adds dedicated arrow keys and usually a small navigation section. Those extra keys often make the case slightly wider, so a rest made around a very compact 60% footprint may look short beside some 65% keyboards.

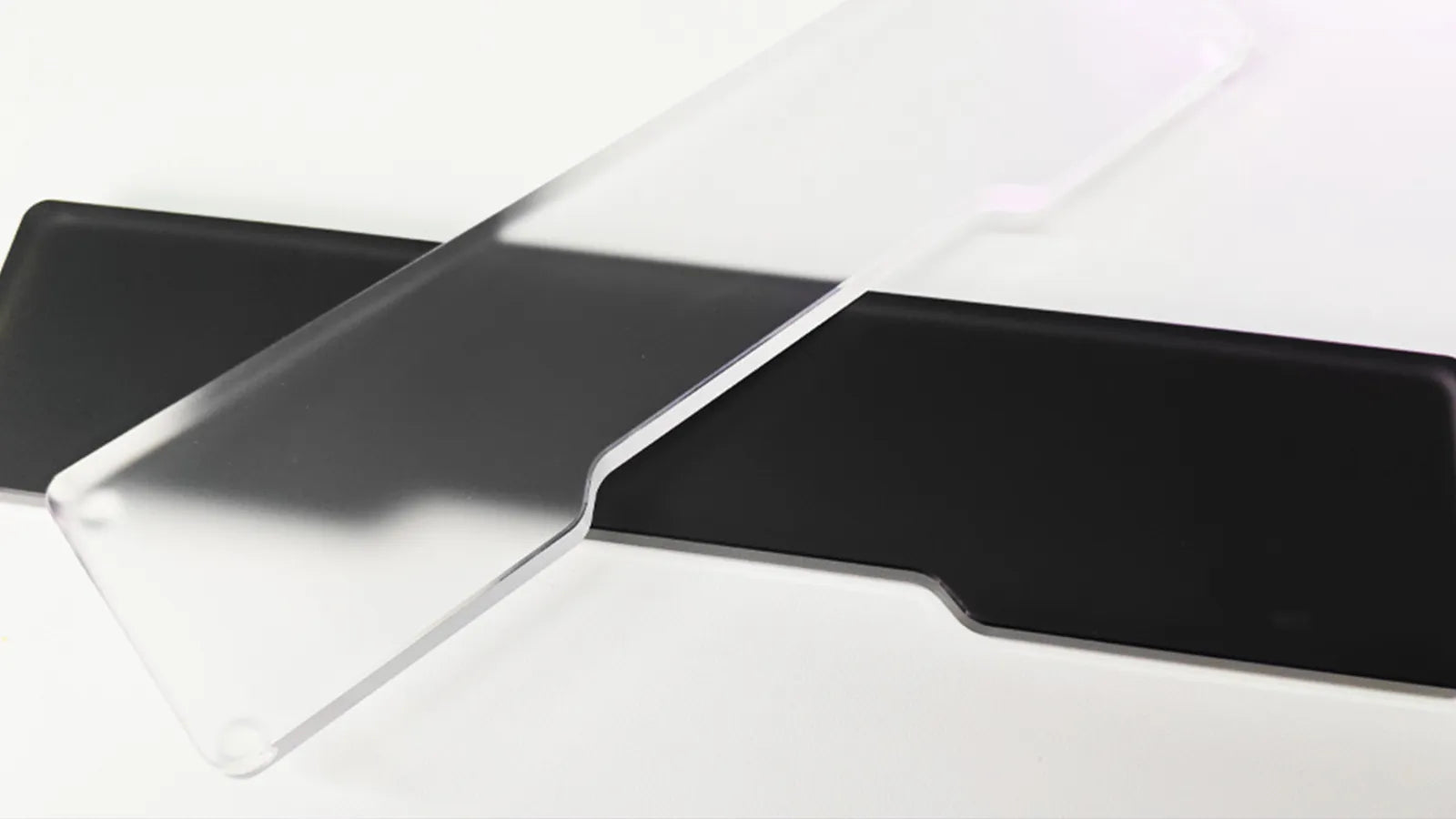

As a practical reference, our Acrylic Wrist Rest is available in sizes for 61, 68, 87, 98, and 104-key layouts. Check your keyboard's actual case width against the listed dimensions before choosing a size.
75% and TKL Keyboards
A 75% keyboard keeps the function row, arrow keys, and common navigation controls in a tightly packed layout. A traditional TKL board also removes the number pad, but its arrow and navigation sections typically have more separation.
As a result, an 87-key TKL rest can extend past the sides of a compact 75% keyboard. This is one of the layout categories where checking the listed width is especially useful.
If you are shopping for a wrist rest for a gaming keyboard, also pay attention to nearby mouse space. A few extra inches of accessory width can matter when the keyboard already sits close to a large mouse pad.
96%, 98-Key, and Full-Size Keyboards
A 96% or 98-key layout keeps a number pad while compressing the gaps between key groups. It can provide nearly the same key coverage as a full-size board within a shorter case.
Traditional full-size keyboards usually provide more separation around the navigation cluster and number pad. Their front edge is therefore often wider.
Measure across the complete keyboard case, including the number pad side. Do not assume a wrist rest intended for a 96% or 98-key keyboard will cover a conventional full-size board equally well.
How Closely Should the Wrist Rest Match Your Keyboard?
A keyboard wrist rest does not need to match the keyboard down to the millimeter. The practical goal is enough width to cover the area where your palms naturally settle without creating an awkward amount of overhang.
Small differences in width usually matter less than an obvious mismatch. If a rest extends slightly beyond both sides of the keyboard and still fits comfortably on the desk, that is generally easy to accommodate. A significantly shorter rest deserves more attention if your regular hand position reaches beyond its edges.
When your keyboard falls between two available sizes, compare the actual width difference and look at the complete desk layout. Mouse clearance, keyboard angle, and the position of nearby accessories can make one size more practical.
Height deserves a quick check too. The rest should sit comfortably in relation to the keyboard's front edge without encouraging the hands to bend sharply upward or downward.
The OSHA guidance on wrist and palm supports recommends considering width, height, slope, and contour in relation to the keyboard. It also advises keeping the hands free to move during active typing and using the support mainly during pauses.
Check Mouse Space and Desk Depth
A well-matched wrist rest for keyboard use still needs to fit the rest of the desk. This matters particularly in gaming setups where keyboard position and mouse movement can use the same part of the workspace.
Low-sensitivity players often make wide mouse sweeps. Put your mouse, mouse pad, and keyboard in their normal positions before checking how much room a wrist rest can occupy.
Keyboard angle changes the equation too. If you rotate your keyboard for a comfortable WASD position, one side may move closer to the mouse pad while a corner projects farther toward the front of the desk.
Desk depth is just as important. Measure the clear space between the keyboard and the front edge of your desk. The rest should sit fully on the work surface without forcing the keyboard farther away than you normally place it.
Compact keyboards paired with appropriately sized keyboard wrist rests can be especially practical when mouse room is limited because the overall keyboard area stays relatively narrow.
Final Fit Checks Before You Buy
Once you have narrowed down the correct width, a few other dimensions can help you avoid a setup that fits on paper but feels awkward on the desk.
Check these details:
- Wrist rest depth: Confirm that it fits between the keyboard and the edge of your desk.
- Front-edge height: Compare the rest with the front height of your keyboard.
- Keyboard angle: Evaluate the setup in the position you normally use.
- Mouse clearance: Leave enough room for your regular mouse movement.
- Desk contact: Make sure the complete rest can sit flat on the surface.
- Attached modules: Include any section that normally remains connected to the keyboard.
These checks are particularly useful for custom mechanical keyboards, unconventional layouts, and compact desks where several peripherals share the same space.
FAQ about Keyboard Wrist Rest Sizing
Q1. Can One Wrist Rest Work With Multiple Keyboards?
Yes, particularly when the keyboards have similar case widths and front-edge heights. Compare both physical dimensions before sharing one rest. Two keyboards with different layout names can still be close enough in size to use the same support comfortably.
Q2. Does Keycap Size Affect Wrist Rest Sizing?
Standard keycaps usually have little influence on wrist rest width because the keyboard case determines the overall footprint. Wide bezels, macro columns, side controls, knobs, and decorative case sections are much more likely to affect the size you need.
Q3. How Do I Size a Wrist Rest for a Separate Numpad?
Treat the keyboard and detachable numpad as separate devices if you regularly reposition the numpad. A wrist rest sized to the main keyboard gives you greater placement flexibility. A permanently adjacent numpad may make wider front coverage more useful.
Q4. Do Split Keyboards Need One Long Wrist Rest?
Many split-keyboard setups work better with two separate palm supports because each keyboard half can move independently. One long rest may restrict the distance or angle between the two halves, which can make flexible positioning harder.
Q5. Should I Include a Detachable Keyboard Module When Measuring?
Include the module when it normally stays attached during typing or gaming. If you remove it frequently, measure the main keyboard separately as well. Base the final size on the configuration you use for most of your desk time.
