For many standard and mechanical keyboard setups, 15 to 20 mm (0.6 to 0.8 inches) is a useful starting range for wrist rest height. The better target is to have the top of the rest sit roughly level with, or slightly below, the keyboard's front edge.
Keyboard designs vary widely, so the number alone cannot tell you if the fit is right. Case height, typing angle, rear feet, and wrist rest material all affect where your hands end up. A wrist rest for computer keyboard use should let your hand reach the keys without a noticeable upward or downward bend at the wrist.
Measure the Front Height of Your Keyboard
The 15 to 20 mm range gives you a quick reference, but your own keyboard provides a much better measurement. Tall mechanical boards and low-profile models can differ enough that the same wrist rest feels completely different with each one.
Place the keyboard on your desk exactly as you normally use it. Keep the rear feet in their usual position. Then measure vertically from the desk surface to the front edge of the keyboard case, near the spacebar.
Measure the case edge, not the top of the keycaps. Your fingers naturally rise above the palm support to reach the keys, so keycap height does not represent the height the wrist rest needs to meet.
For example:
- A keyboard with a front edge around 16 mm high gives you a strong reason to look around the 15 to 20 mm range.
- A keyboard with a front edge around 23 mm high may pair better with a taller or more steeply sloped support.
- A low-profile keyboard with a 10 to 12 mm front edge may feel awkward with a firm 20 mm rest.
You do not need a millimeter-perfect match. The aim is a smooth transition from the palm area toward the keyboard.
The OSHA wrist and palm support recommendations specifically advise matching the support to the width, height, and slope of the keyboard's front edge while keeping wrist posture as straight as possible.
Match the Wrist Rest to the Keyboard Edge
Once you have the measurement, sit down and check the fit in the position you actually use. Numbers can narrow the choice, but your hand angle tells you if the pairing works.
Place your fingers lightly on the home row and look at your hand from the side. The forearm, wrist, and hand should follow a relaxed line. The wrist rest should meet the heel of your palm during pauses without lifting your hand noticeably above the keyboard.
Gaming users should repeat this check with the left hand on WASD. The palm can sit in a different position during gaming than during regular typing.
If a 15 mm rest feels fine while typing but your wrist angles upward on WASD, try a slightly higher support or reassess the keyboard angle. If a 20 mm rest lifts your palm so high that your fingers slope downward toward the keys, the support may be too tall for that setup.
This quick WASD test makes a wrist rest for gaming keyboard use easier to evaluate before a long session exposes the problem.
Desk position also matters. If the keyboard sits significantly above your elbows, changing wrist rest height alone may leave the hand angle unchanged.
How Keyboard Feet Change Wrist Rest Fit
Keyboard feet can change the feel of a correctly sized rest even when the front-edge measurement barely moves. Raising the rear of the board increases the slope toward the back rows.
That means a 17 mm wrist rest can feel well matched with the keyboard flat and noticeably different after the rear feet are opened.
Check the keyboard in its normal playing or typing position before judging wrist rest height. If the rear feet are usually raised, measure and test the setup that way.
The OSHA keyboard ergonomics recommendations advise adjusting keyboard angle to support straighter wrist posture and specifically caution against using keyboard feet when they increase wrist bending.
A simple order works well:
- Set your normal keyboard angle.
- Measure the front edge.
- Place the wrist rest against the keyboard.
- Check your hand from the side while typing.
- Check it again in your usual gaming position.
Signs That a Wrist Rest Is Too High or Too Low
You do not need specialized ergonomic equipment to spot a poor height match. Most problems show up as visible hand angle, uncomfortable reaching, or pressure in the wrong place.
| What You Notice | Likely Issue | What to Check |
|---|---|---|
| Hands climb upward toward the keys | Rest may be too low | Compare its height with the front case edge |
| Hands slope downward toward the keys | Rest may be too high | Check palm height above the keyboard edge |
| Wrist presses directly into the support | Contact point is misplaced | Shift support toward the heel of the palm |
| Fit changes after opening keyboard feet | Keyboard slope changed | Test again at your normal angle |
| Typing feels fine but WASD feels awkward | Gaming position changes hand angle | Judge fit while holding WASD |
Excess Upward or Downward Wrist Bending
A wrist rest that sits well below a tall mechanical keyboard can leave the hand climbing toward the keys. A high support paired with a lower keyboard can lift the palm and send the fingers downward.
Take a quick side-view photo while your fingers are on the keyboard. It often makes a subtle angle easier to see than looking down at your own hands.
Test both typing and gaming positions if you regularly do both. A wrist rest keyboard pairing that works for one hand position can feel different in another.
Pressure, Numbness, or Tingling
Height can also change where the support touches your hand.
The rest should primarily meet the heel of the palm during pauses. Direct pressure beneath the wrist is a sign to check placement and height. Your hands should remain free to move across the keyboard while you type or play.
A hard edge pressing into one location, repeated tingling, or numbness deserves attention. Change the setup and give the area a break. Persistent or unexplained symptoms are better discussed with a healthcare professional than treated as a wrist-rest sizing problem alone.
Why Wrist Rest Thickness Does Not Tell the Whole Story
Shopping pages usually make thickness easy to compare, yet listed thickness and effective support height can be different.
Rigid materials such as acrylic and wood compress very little under ordinary palm pressure. Soft foam compresses considerably more. A 20 mm foam keyboard wrist rest pad may therefore support your palm lower than a rigid 20 mm model once your hand settles onto it.
Slope matters too. A support can measure 15 mm at one edge and 20 mm at another, which changes the hand-to-keyboard transition.

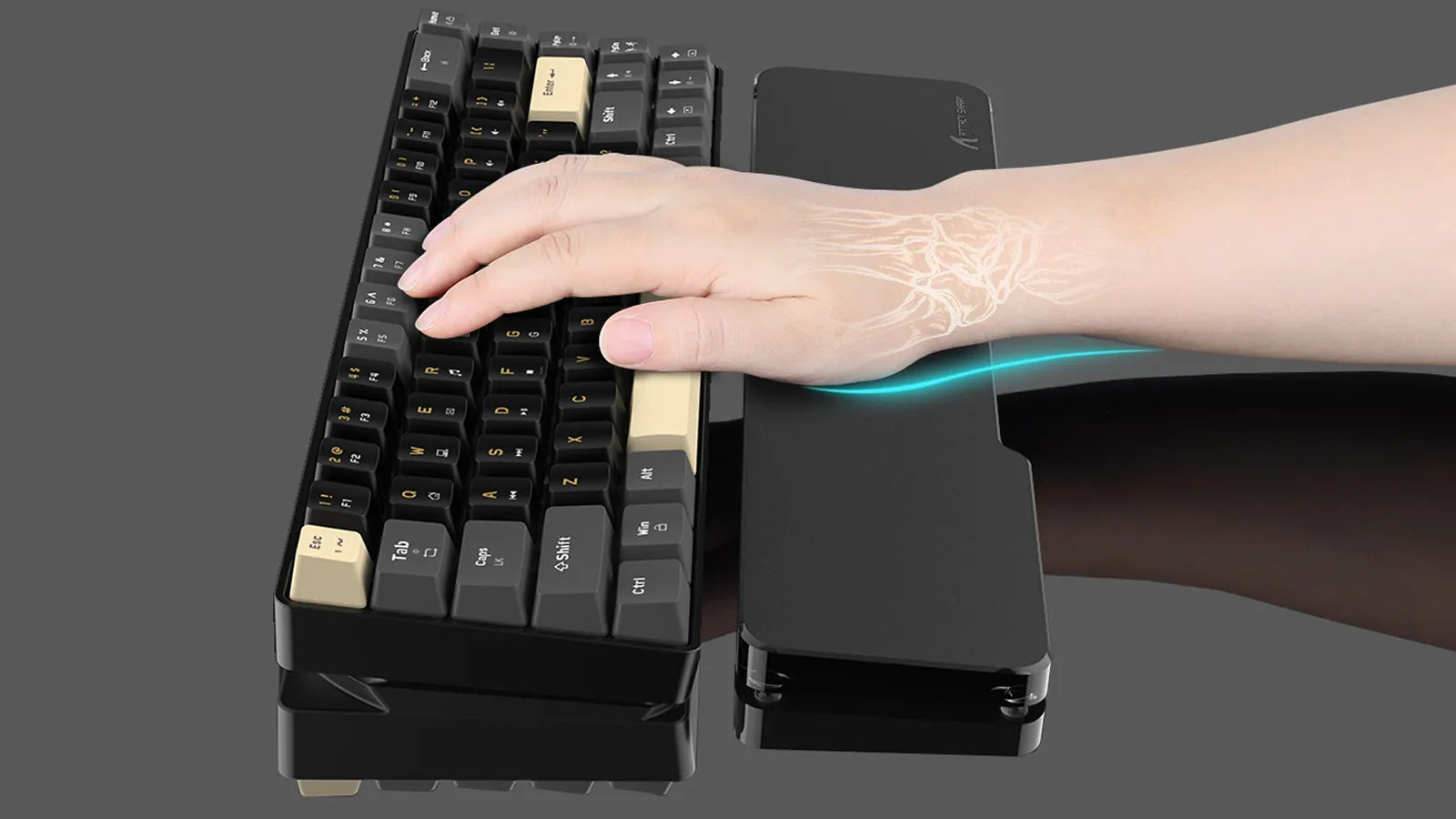

The MAMBASNAKE CNC Acrylic Wrist Rest uses a 1 cm to 1.5 cm sloped profile, so the support height changes gradually across the rest instead of staying uniform from front to back.
When comparing heights, check:
- Height near your normal palm contact point
- Material compression
- Slope toward the keyboard
Width, Slope, and Firmness Also Matter
Once height is close, a few secondary dimensions determine how consistent that support feels across the keyboard.
Width should suit the actual keyboard case. A 60%, 75%, TKL, and full-size board can each require a different span, and two keyboards with the same nominal layout can still have different case widths.
Slope influences how gradually the hand approaches the keys. Firmness determines how much the palm sinks during use.
For an ergonomic wrist rest for keyboard use, 15 to 20 mm works well as a shopping benchmark, while the front-edge match and actual hand position provide the final check. That combination gives you a much more useful answer than choosing the thickest pad available.
FAQs about Keyboard Wrist Rest Height and Fit
Q1. How Deep Should a Keyboard Wrist Rest Be?
OSHA recommends a wrist or palm support at least 1.5 inches (3.8 cm) deep. Adequate depth provides a broader area for the heel of the palm and helps avoid concentrating support along a narrow front edge.
Q2. Can One Wrist Rest Work With Different Keyboards?
Yes. Similar front-edge heights make sharing a rest much easier. A move from a low-profile keyboard to a tall mechanical board can create a large enough height difference that the same support no longer lines up comfortably.
Q3. How Close Should the Wrist Rest Sit to the Keyboard?
Place it close to the front of the keyboard while leaving keys and controls unobstructed. A large gap changes where your palms land, while sliding the rest underneath the case can reduce the usable support area.
Q4. Should a Wrist Rest Be Longer Than the Keyboard?
It does not need to be longer. Matching the keyboard's usable width is usually enough. Compact boards can use shorter rests, while full-size layouts benefit from support that covers the hand positions used across the main key area.
Q5. Does a 20 mm Wrist Rest Work With Every Mechanical Keyboard?
No. 20 mm is a useful reference, not a universal target. A tall mechanical keyboard may need that height or more, while a low-profile board may pair better with a thinner support. Measure the keyboard's front edge before choosing.
