A keyboard can feel personal for gamers and heavy typists, combining look, sound, and key action into a single device. Custom mechanical builds let you pick case, plate, switches, stabilizers, and keycaps so the result matches your preferences. Soldering used to block many newcomers, but hot-swappable PCBs remove that barrier: switches plug into sockets and can be changed later. With a few parts and basic tools, you can assemble a board, test it, and refine its feel without learning electronics.
Why Build a Custom Keyboard with a Hot-Swappable PCB?
So, why build your own keyboard? Hot-swappable PCBs let you try different switches, fix or replace a single key without soldering, and tune the board’s sound and feel until it matches how you like to type.
- Ultimate Personalization: This is the biggest draw. You get to choose every single part: the case color, the keycap style, and most importantly, the exact feel of your switches. You can create a keyboard that is 100% you.
- The “No-Solder” Advantage: This is the game-changer. Hot-swappable sockets mean you can simply press your switches into place. It removes the biggest barrier to entry, making a custom keyboard build feel more like building with LEGOs than an electronics project.
- Future-Proof & Upgradable: Don’t like your switches anymore? Want to try something new? With a hot-swappable keyboard, you can pull the old ones out and pop new ones in within minutes. Your board can evolve with your tastes.
- A Fun, Rewarding Hobby: There’s a special kind of satisfaction that comes from typing on a machine you built with your own hands. It’s a fun process that teaches you about how the things you use every day actually work.
What Parts Do You Need for Your First Custom Keyboard Build?
Assembling a mechanical keyboard starts with the right components. Each part affects feel, sound, and functionality, so check your kit carefully and make sure you have everything needed before starting the build.
1. The PCB (The Brain): This is the circuit board. It’s the most important part to get right. You need to make sure you're buying a hot-swappable PCB, which has special sockets for the switches.
2. The Case (The Body): This is the outer shell of the keyboard. It can be made from anything from affordable plastic to hefty aluminum, and it defines the keyboard's weight, sound, and overall look.
3. The Plate (The Skeleton): This plate sits on top of the PCB and helps hold the switches firmly in place. It contributes to the keyboard's stiffness and sound profile.
4. The Switches (The Heart): This is where you decide the fundamental feel of your keyboard. The three main types are:
- Linear: Smooth and fast, with no bump. Great for gaming.
- Tactile: A satisfying, non-audible bump on each press. A perfect all-rounder.
- Clicky: A bump you can feel and a “click” you can hear. Excellent for typists.
5. The Keycaps (The Outfit): These are the plastic tops you see and touch. They come in countless colors and styles, allowing you to give your keyboard its unique personality.
6. The Stabilizers (The Support System): These are special supports for your larger keys, like the spacebar, Enter, and Shift keys, to keep them from wobbling.
7. The USB Cable (The Lifeline): This connects your keyboard to your PC. Many enthusiasts opt for a stylish coiled aviator cable for a premium, clean look on their desk.
8. The Tools: You don’t need a full workshop. At a minimum, you’ll want a good switch/keycap puller to safely install and remove parts.
How Should You Get Started with Your First Custom Keyboard?
You can approach your first keyboard build in different ways based on budget and how much control you want. Choose a method that lets you enjoy the process while learning the basics of assembly and customization.
Path 1: The Budget-Friendly Starter
This is the smartest entry point for most beginners. Instead of buying every part separately, you can buy a complete, pre-built hot-swappable keyboard. This way, you get a great experience right out of the box, and you can start your customization journey later. For instance, MAMBASNAKE offers well-built keyboards at a great price. You can get a fantastic keyboard to start with, and then, down the line, buy a new set of switches and easily swap them in yourself. This gives you a taste of customization without the initial stress of sourcing every single part, offering great value and convenience for any newcomer.
Path 2: The Balanced Enthusiast Build
This involves buying a “barebones” kit. These kits typically include the case, PCB, and plate. This path gives you more creative control, as you then get to choose your own switches and keycaps to complete the build. It’s the perfect middle ground.
Path 3: The “Buy Once, Cry Once” Premium Start
If you’ve done your research and know exactly what you want, you can source every single component individually. This gives you absolute control over every detail, from the plate material to the case acoustics, allowing you to build a truly high-end custom mechanical keyboard.
How to Assemble a Hot-Swappable Keyboard Step-by-Step
Assembly is the hands-on part of building your keyboard. The steps are simple, and with the right parts and a clear workspace, you can complete the build in about an hour while learning how each component affects typing feel and sound.
Step 1: Prepare Your Workspace
Lay everything out on a clean, open surface. A desk mat is perfect for this to prevent scratching any parts.
Step 2: Test Your PCB (The Most Important Pre-Flight Check!)
Before you build anything, plug the bare PCB into your computer. Go to a keyboard tester website and use a pair of tweezers to touch the two metal contacts inside each hot-swap socket. You should see the corresponding key light up on the screen. Testing all the sockets now can save you a huge headache later.
Step 3: Lube and Install Your Stabilizers
This is arguably the most important step for achieving a great sound. Applying a special lubricant to your stabilizers gets rid of any rattling or ticking sounds. Once lubed, snap or screw them into the PCB.
Step 4: Assemble the Case, Plate, and PCB
Gently place the plate on top of the PCB. Then, lower the assembled unit into the keyboard case and secure it with the included screws.

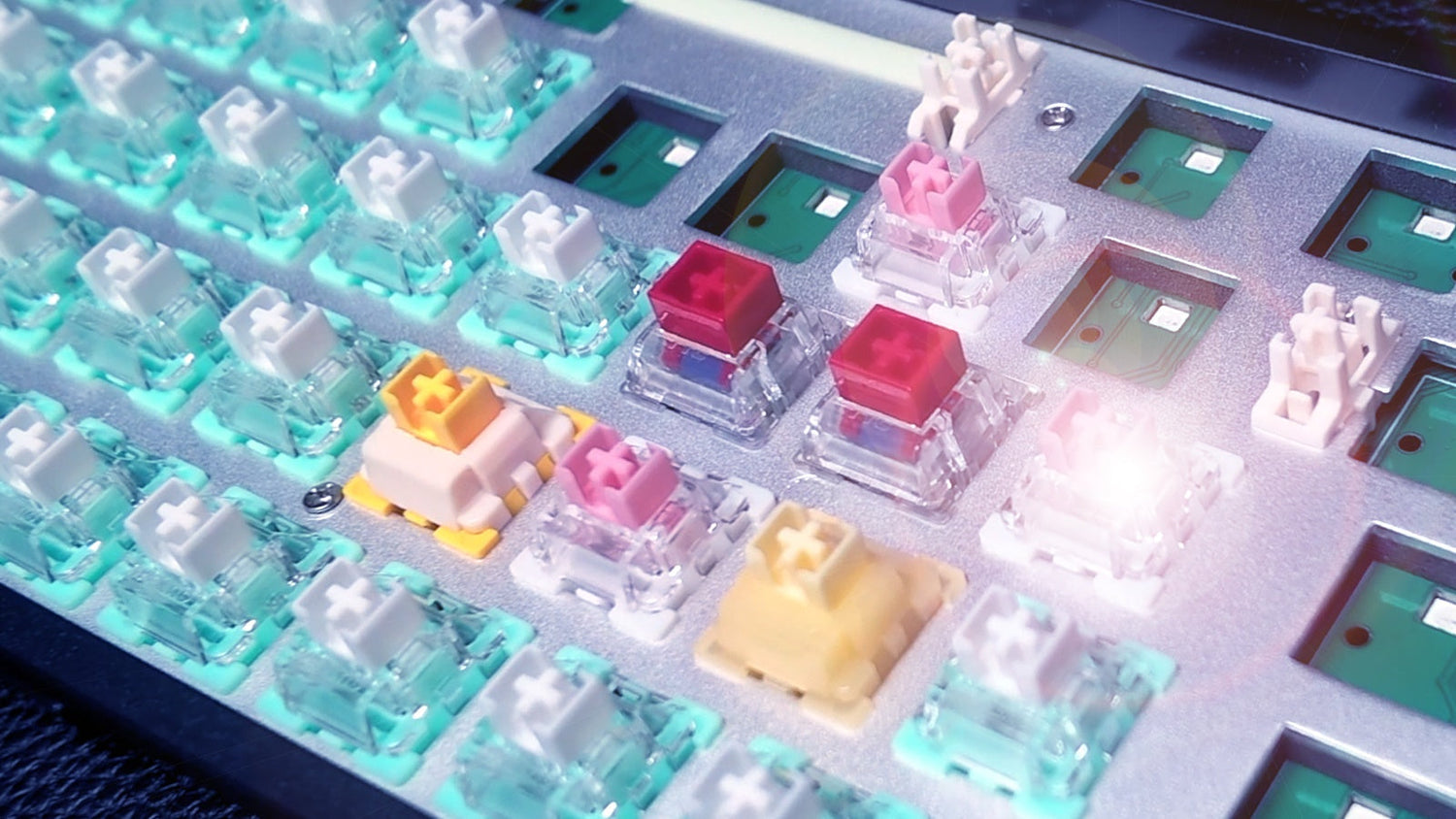

Step 5: Pop in Your Mechanical Switches (The Satisfying Part!)
Align each switch with the holes in the plate and the sockets on the PCB. Make sure the little metal pins on the bottom of the switch are perfectly straight, then press down firmly and evenly until it clicks into place.
Step 6: Mount Your Keycaps
With all the switches installed, you can now press your keycaps onto the switch stems. This is the final visual transformation.
Step 7: Connect and Do a Final Test
Plug your new custom keyboard in with your USB cable. Open a text document and test every single key to make sure everything is working perfectly.
What Can You Customize with Your New Keyboard’s Software?
The physical build is just the beginning. Most custom keyboards support powerful software (like VIA or QMK) that lets you customize their brains. You can easily get into:
- Key Remapping: Change any key to do whatever you want. Turn your Caps Lock into another Control key, for example.
- Layers and Macros: Create different layers of commands. For example, you could have a special layer for gaming or video editing, with complex shortcuts programmed as simple macros.
What Common Mistakes Should You Avoid When Building Your Custom Keyboard?
- Bending Switch Pins: This is the most common beginner mistake. If a switch isn't going in, don't force it. Pull it out and check that the metal pins are straight before trying again.
- Forgetting to Test the PCB: It’s tempting to jump right into building, but if you have a faulty socket, finding it after the build is complete is a nightmare. Always test first!
- Installing Stabilizers Incorrectly: Make sure your stabilizers are fully seated and oriented the right way. A backward spacebar stabilizer is a frustrating fix.
Your Journey into Custom Keyboards Begins
Building your own mechanical keyboard might seem complex, but thanks to hot-swap technology, it is an accessible and incredibly rewarding project for anyone. The process itself is a huge part of the fun, and the result is a high-performance keyboard that is truly, uniquely yours.
So don’t be afraid to get started. Explore the parts, find a combination that speaks to your style, and enjoy the immense satisfaction of typing on something you built with your own hands. Welcome to the hobby.
5 FAQs about Custom Keyboard Customization
Q1. Can I use any switch with a hot-swappable PCB?
Most hot-swappable PCBs support standard 3-pin or 5-pin mechanical switches, but some boards may only support one type. Always check your PCB specifications before buying switches to ensure compatibility. Using the wrong type can prevent proper installation or even damage the socket.
Q2. How do I know if my stabilizers are installed correctly?
A correctly installed stabilizer should sit firmly in place with no wiggle. Test by pressing the larger keys, like the spacebar or Enter. If you hear rattling or feel uneven resistance, remove the stabilizer and double-check orientation and seating before lubing and reinstalling.
Q3. Can I change the keycaps after assembly?
Yes. One of the advantages of a mechanical keyboard is that keycaps are fully removable. Use a keycap puller to safely remove them, and you can swap in a new set for a different look or feel anytime without affecting the switches underneath.
Q4. Do I need software to customize my keyboard?
Software like VIA or QMK is optional but highly recommended. These programs allow you to remap keys, create layers, and set macros. Without software, the keyboard will still function normally, but customization options will be limited to physical key placement.
Q5. How often should I maintain or clean my custom keyboard?
Regular maintenance keeps your keyboard feeling smooth and sounding great. Light cleaning and keycap removal every few months is usually enough for casual users. If you notice stickiness, rattling, or dust buildup, consider deeper cleaning or relubbing switches and stabilizers to maintain performance.
