Do You Really Know How to Use a Magnetic Keyboard?
SNAKE MAMBA
If you've just recently purchased a magnetic keyboard, then you might not be taking full advantage of its features yet. Some individuals merely use these newer-style keyboards just the same way as mechanical keyboards.
Magnetic keyboards with Hall Effect sensors are another story - they monitor the position of the key throughout the press, instead of at contact. In this, we're detailing three of the primary features you should be aware of: adjustable actuation points, rapid trigger technology, and analog input abilities.
How Magnetic Keyboards Work Differently
In order to use a magnetic keyboard effectively, it's helpful to observe how it works differently from typical keyboards.
Old-school mechanical keyboards work like a simple switch. When you press a key down to a point, it sends an "ON" signal. When you release it, it goes "OFF." The keyboard only knows if a key is being pressed or not - it doesn't know how far down you've pressed it.

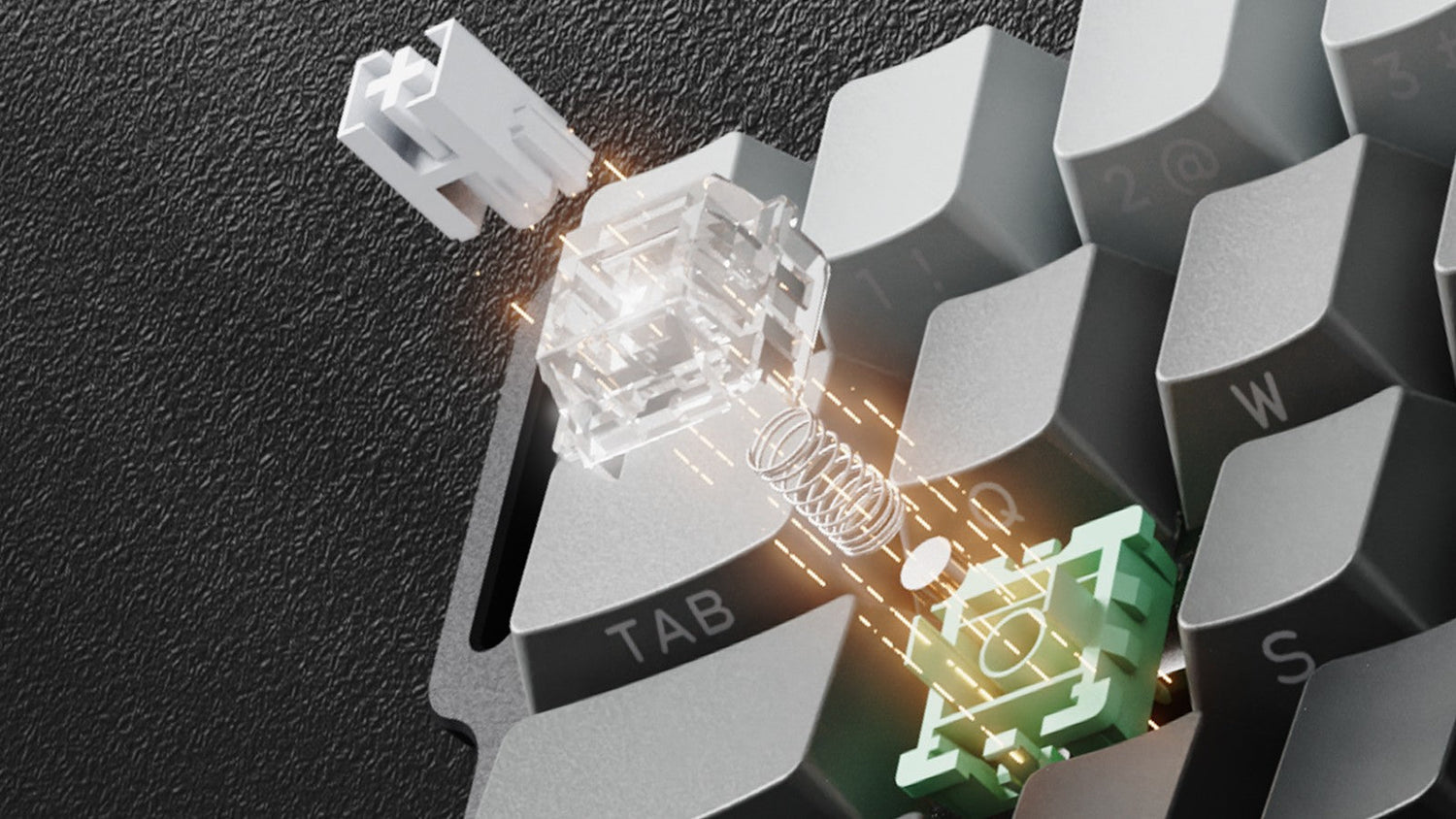

Magnetic keyboards utilize sensors to monitor the location of a magnet on the key along its full range of travel. What this implies is that the keyboard is aware at all times precisely how far each key is being pressed.
This is the ability to sense the full range of travel, so the particular traits that make magnetic keyboards unique, like adjustable actuation points and quick trigger behavior, are possible.
Core Feature 1: Adjustable Actuation Point
One of the key advantages of a magnetic switch keyboard is that it can be programmed to respond when a key is pressed. On typical keyboards, the actuation point (when a key is registered as being pressed) is set in the factory. With a magnetic keyboard, you can shift this point along the key's travel path wherever you want through the keyboard software - typically between 0.1mm (basically shallow) and 4.0mm (fully pressed). You can have multiple profiles for different uses:
Gaming Setup (0.4mm - 1.5mm)
For games like FPS, MOBAs, or rhythm games, setting a shallow actuation point means keys register almost instantly when you start pressing them.
- This gives you faster reactions in games - your character moves or uses abilities more quickly
- You can set this for specific keys (like WASD) while keeping other keys at standard settings
- Keep in mind that very shallow settings (under 0.8mm) might cause accidental keypresses
Typing Setup (1.5mm - 3.0mm)
When typing documents or coding, accuracy is more important than speed.
- A deeper actuation point reduces typos since you need to press keys more deliberately
- This can feel more like traditional keyboards if that's what you're used to
- You can easily switch between profiles using the keyboard software. You can also create mixed profiles - for example, keeping gaming keys sensitive while setting modifier keys (Shift, Ctrl) to require deeper presses to prevent mistakes.
Core Feature 2: Rapid Trigger
While adjustable actuation is useful, Rapid Trigger (sometimes called Dynamic Actuation) offers significant advantages, especially for gaming.
On traditional keyboards, after pressing a key, you must release it past a certain point before it can register again. With Rapid Trigger, a key resets as soon as you start lifting your finger, even just a tiny bit. It also registers immediately when you start pressing down again. This means your wired keyboard responds to the slightest finger movements.
Benefits of Gaming
This feature helps in several gaming situations:
Changing Direction: In games like CS or Valorant, when you need to quickly switch from moving left to right, Rapid Trigger allows faster direction changes because the key resets almost instantly.
Quick Repeated Presses: For games requiring rapid key tapping, you can press the same key much faster since you don't need to release it fully between presses.
Precise Movement: For techniques like "peeking" in FPS games, you can make small, precise movements more easily with quick taps.
Setting It Up
To use Rapid Trigger effectively:
- Enable it in your keyboard's software.
- Adjust the sensitivity (how little upward movement is needed to reset).
- Try combining it with a shallow actuation point for maximum speed. Rapid Trigger might feel too sensitive at first. It takes some time to get used to, but many competitive gamers find it worth the adjustment period.
Core Feature 3: Analog Movement Simulation
Some magnetic keyboards offer a more advanced feature - the ability to use the depth of your keypress like a controller joystick or trigger.
Instead of keys just being "on" or "off," the keyboard can detect how far down you've pressed a key and translate that to variable input. This works similarly to how pressing a trigger halfway on a game controller might make your character walk instead of run.
Possible Uses
This feature could be useful for:
Driving Games: Press W slightly for slow acceleration or fully for maximum speed.
Stealth Games: Press lightly to walk or firmly to run.
Creative Software: Control brush size or tool intensity by how hard you press.
Limitations
This feature has some challenges:
- Not all keyboard software supports analog output.
- Games need to support both keyboard and controller inputs at the same time.
- Setting it up can be complicated.
- This technology is still developing and isn't as refined as the other features. While analog input has potential, it's currently more of a specialized feature for enthusiasts who enjoy tinkering with their setup.
Software & Customization are Paramount
If you never open your keyboard's software, you're just using an expensive regular keyboard. The software lets you control all the features that make your keyboard special.
When evaluating or using a magnetic keyboard, look for software that provides control over:
- Actuation Point Adjustment: Ability to set custom actuation depths, ideally per-key and with profile saving.
- Rapid Trigger Settings: Toggling the feature on/off and adjusting the upward travel sensitivity for reset.
- Analog Mode Configuration: Options to output XInput or other analog signals if the hardware supports it.
- Profile Management: Creating, saving, and easily switching between different configurations (e.g., "Gaming FPS," "Typing," "Driving Sim").
-
Standard Keyboard Customization: Expected features like RGB lighting control, macro recording, and key remapping should also be present. Keyboards with onboard memory save your settings directly to the keyboard itself. This means your setups work even when the software isn't running or when you plug into a different computer.
MAMBASNAKE X60 HE Wireless Rapid Trigger Keyboard Magnetic Switch
Price : $49.99
0.01mm RT Sensitivity, Zero Dead Zone Ready for your next...
Put Your Magnetic Keyboard's Capabilities to Work
You now possess the knowledge of what makes a magnetic keyboard special: user-adjustable actuation for personalized responsiveness, industry-altering Rapid Trigger for better inputs and resets, and the specialized power of analog simulation. The key thing to keep in mind is that these fantastic features are mired in default mode unless set actively. Let your advanced hardware perform like a low-end model no more. Dig into the software of your keyboard, test deliberately with actuation points and Rapid Trigger sensitivity on your main activities – gaming and typing. Only through deliberate setup and configuration will you genuinely take advantage of the performance advantages your magnetic keyboard offers.
